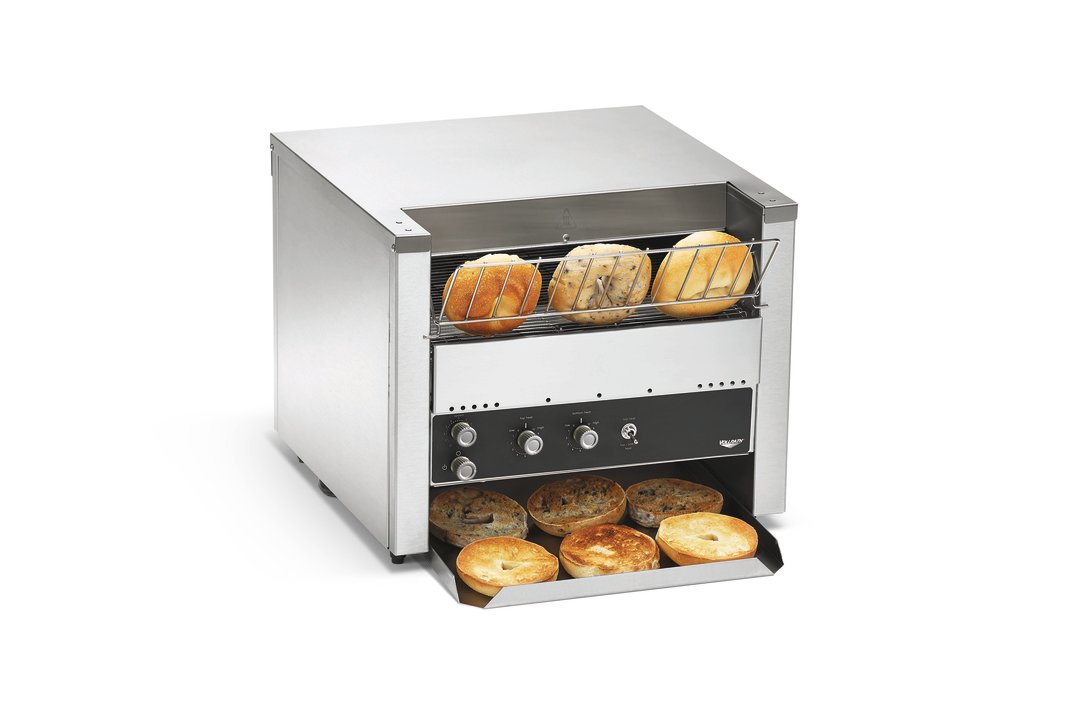

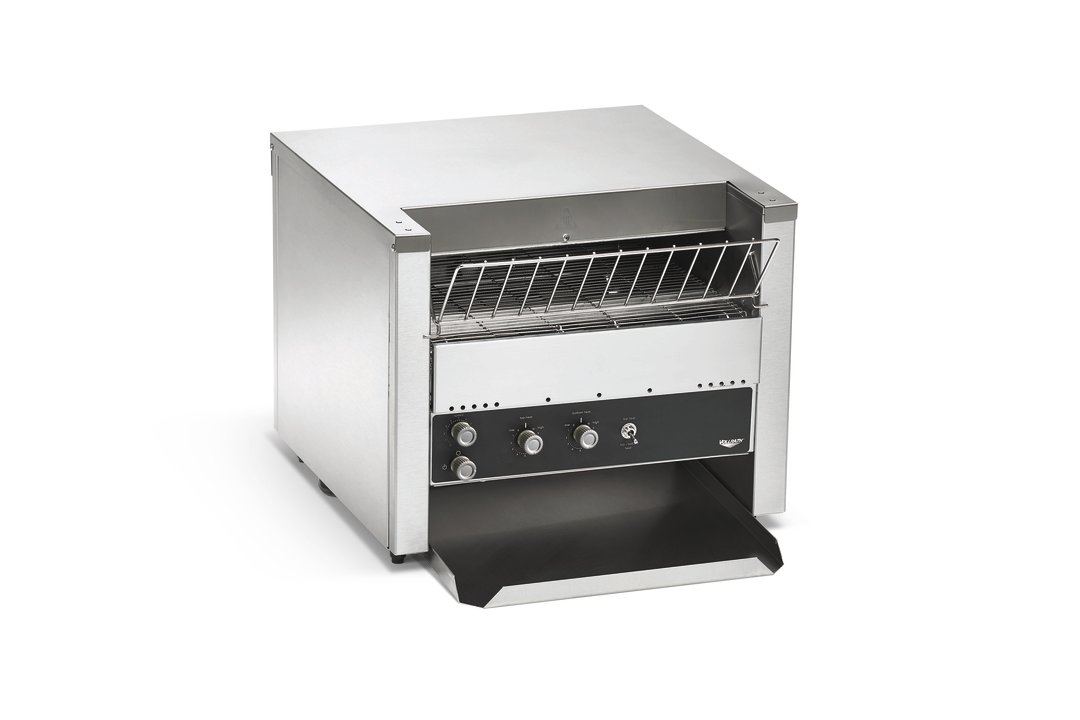

CT4BH-2081400 || 208-volt JT3BH bun or bagel conveyor toaster
This Vollrath® JT3BH bun or bagel conveyor toaster is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The adjustable 1½- to 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. The 14½-inch-wide conveyor can fit up to 1,400 bun halves or 950 bread slices per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
208-volt JT3BH bun or bagel conveyor toaster
This Vollrath® JT3BH bun or bagel conveyor toaster is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The adjustable 1½- to 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. The 14½-inch-wide conveyor can fit up to 1,400 bun halves or 950 bread slices per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.
Designed for bread slices, bun halves and bagel halves
Variable-speed control, variable top and bottom heat controls, and one- or two-sided toasting switch help you achieve desired results
Forced convection ensures even toasting
Quartz heating elements respond quickly and save energy
Durable stainless and aluminized steel is built to last
Maintenance-free drive system simplifies operation and servicing
14½-inch-wide conveyor fits up to 1,400 items per hour
1½- to 3-inch adjustable product opening easily fits bread, buns, bagels and other high-clearance items
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT3BH |
| UPC | 671080705804 |

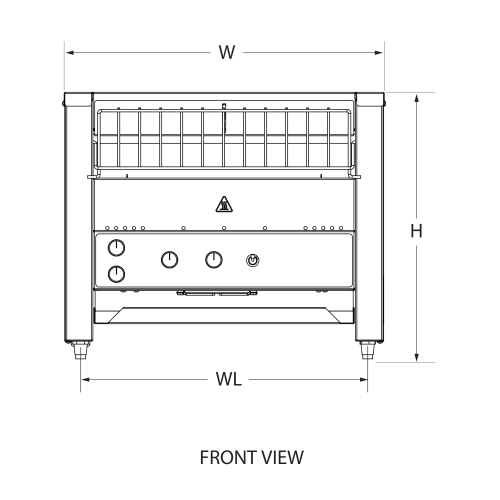

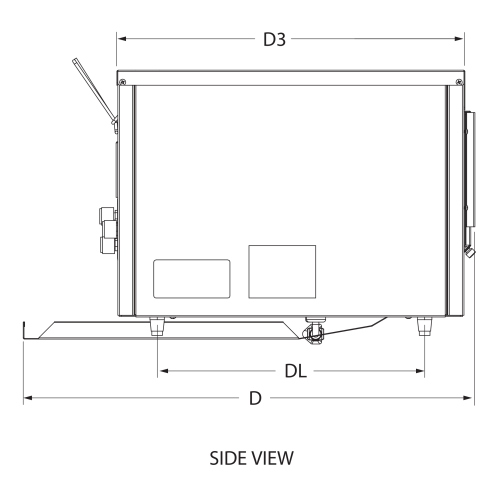

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 18.125 x 23.875 x 15 |
| (W) Width (IN) | 18.12 |
| (D) Depth (IN) | 23.87 |
| (H) Height (IN) | 15 |
| (WL) Width between legs | 16.25 |
| (DL) Depth between legs | 14.125 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| (D3) Housing Depth (IN) | 18.25 |
| (DB) Depth of Body (IN) | 18.25 |
| Conveyor Width (IN) | 14.5 |
| Overall Dimensions (CM) | 46.0 x 66.6 x 38.1 |
| (W) Width (CM) | 46 |
| (D) Depth (CM) | 66.6 |
| (H) Height (CM) | 38.1 |
| (WL) Width between legs (CM) | 41.3 |
| (DL) Depth between legs (CM) | 35.9 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
| (D3) Housing Depth (CM) | 46.4 |
| (DB) Depth of Body (CM) | 46.4 |
| Conveyor Width (CM) | 36.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 17.3 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 208 |
| Watts | 3600 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 23 |
| Case Height | 19.5 |
| Case Length | 25.5 |
| Case Lot Cube (ft.) | 6.62 |
| Case Lot Weight (lbs.) | 64 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $12.38 |
| SPROCKET 25B17-8MM | B401300 | $27.87 |
| SHAFT IDLER 14.5" | B401343 | $49.61 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $204.78 |
| SILVER PUSH-ON KNOB | B405018 | $8.32 |
| SPRING .038" DIA 2.462" LENGTH | B400260 | $8.84 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $15.29 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $70.93 |
| BEARING FRONT SPRING LOADED | B401350 | $16.02 |
| TERMINAL BLOCK 5 POSITION | B401033 | $16.02 |
| GUARD FAN | B401220 | $8.84 |
| SWITCH 240 V | B401102 | $46.80 |
| SWITCH FAN CERAMIC | B401107 | $42.43 |
| CORD POWER 12/3 60" 6-30P | B401051 | $59.59 |
| WIRE CONVEYOR BELT 14.5"X29.5" | B204277 | $133.85 |
| CT4 18" TOAST CHUTE | B300013 | $100.78 |
| SWITCH TOGGLE ON/ON 15A | B401116 | $71.66 |
| CT4 18" LOAD-UP WIRE RACK | B400382 | $30.68 |
| RESET SWITCH | B401100 | $42.43 |
| CHAIN LADDER DRIVE 15" | B401388 | $47.01 |
| LEGS BLACK 1" 1/4-20 | B400300 | $16.22 |
| CT4 18" CRUMB TRAY ASSEMBLY | B204278 | $83.51 |
| BEARING ASSEMBLY 5/16 | B201100 | $24.86 |
| SWITCH ROTARY POWER SAVER | B401103 | $58.55 |
| TERMINAL BLOCK 2 POSITION | B401034 | $5.82 |
| 2PK HEAT ELEM 15-3/8 104V 900W | 59839 | $180.34 |
| MOTOR FAN | B401211 | $79.56 |
| SHAFT DRIVE 14.5" | B401342 | $53.98 |
| CT4-2000 CONTROL LABEL | B401415 | $47.84 |
| CORD WARNING LABEL | B401404 | $0.42 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.73 |
| LABEL RESET CT4 | B401425 | $8.22 |
| BEARING, TEFLON 5/16 | B401355 | $8.84 |
| 7/8 WIRE CLAMP | B400331 | $1.14 |
| CT4H 18" HEAT SHUTTER | B300059 | $18.72 |
| 1 1/4" SNAP BUSHING | B400330 | $0.62 |
| 5/8 SNAP BUSHING | B400332 | $0.10 |
